HobbyWing XRotor F7 + Micro 40A 4in1 ESC
Multirotors → FPV Racing drones → Flight controllers → F7 FCs → FC F7 + ESC 4in1 Stacks → HobbyWing XRotor F7 + Micro 40A 4in1 ESC![HobbyWing XRotor F7 + Micro 40A 4in1 ESC HobbyWing XRotor F7 + Micro 40A 4in1 ESC](https://ae01.alicdn.com/kf/Hd132b4e79fdc4539853b2edd5175f0a6I.jpg)
MCU: | F722 |
Gyro: | ICM20602 |
OSD: | + |
Power : | 3-6S |
3.3V BEC: | + |
5V BEC: | 1.5A |
9V/10V BEC: | 1.5A |
Current Sensor: | + |
ESC type: | stack |
ESC: | 4x40A |
BLHeli: | BLHeli_32 |
Receiver: | - |
VTX: | - |
UART Rx: | 5 |
UART Tx: | 5 |
Buzzer pad: | + |
LED pad: | + |
CURR pad: | + |
USB: | Micro USB |
DJI compatible: | + |
Size: | 40x33mm |
Mount Holes: | 20x20mm |
Weight: | 18.5g |
HobbyWing XRotor Convertible F7/40A Stack with F7 Flight Controller HD DJI Plug and Play and 40A HW ESC- 30x30 & 20x20mm
Featuring the new Hobbywing convertable F7 flight controller which is equipped with STM32F722 MCU and has powerful computing ability. Plus fast running speed, and high sensitivity ICM20602 six-axis motion sensor. It can perfectly support bidirectional D-Shot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.
FC SPECIFICATIONS:
- Compatible with (Multirotors) Quadcopters
- Firmware HOBBYWING_XROTORF7CONV
- FC Programming Supported
- Programming via Betaflight/ Cleanflight-configurator
- Compatible with (Modes) PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, PROSHOT1000
- Compatible with (Transmitters) PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- OSD Built-in
- Voltage Monitoring Supported
- Current Monitoring Supported
- External Buzzer Supported
- LED Control Supported
- BEC 5V @ 1.5A ; 10V @ 1.5A
- Size 32x32mm
- Weight 3.3g
ESC FEATURES:
- High-performance 32-bit microprocessor with a running frequency of up to 48MHz for an excellent performance.
- BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli-S.
- All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
- The code supports features to prevent sync loss. There are tunable parameters that can make the code run well even in the most demanding situations, although default settings will work excellently in normal operating environment
- The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us).
- Dshot signaling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power-up.
- The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttles. This can be very useful for finding lost crafts.
ESC SPECIFICATIONS:
- Model: XRotor 40A 4in1 (20x20) BLHeli-32 DShot1200
- Application: FPVs with 130-280mm Diagonal Wheelbase
- LiPo Power input: 3S-6S
- Cont.Current: 40Ax4
- Burst Current: 60Ax4
- BEC Output: NO
- Input wires: Red-14AWG-100mm/ Black-14AWG-100mm
- Output Wire: No wires but solder tabs
- Connectors (In/Out): XT60 plug enclosed with package.
- Weight/Size: 12g/40x33x5mm
- Mounting Pattern: 20x20mm
- Firmware: Hobbywing_XRotor_BLHeli-32 Version
- Throttle Calibration: Supported
- ESC Programming: Stick Programming, BLHeliSuite32
- DEO: Supported
- OneShot Mode: Supported
- Timing: Supported
- Motor Rotation: Supported
Package Includes:
- 1 x HobbyWing XRotor Convertible F7/60A HD Stack DJI PNP - 30x30mm
Prices for HobbyWing XRotor F7 + Micro 40A 4in1 ESC in stores
Deals found: 41 (AliExpress3, XHover1, ReadyMadeRC1, RCPapa1, Banggood1)
Store | Stock level | Lot price | Shipping cost | Coupon / promocode | Pcs./lot | 1pc price |
Banggood | Out of stock | $90 | 1 | $90 | ||
XHover | Out of stock | $90 | 1 | $90 | ||
RCPapa | Out of stock | $96 | 1 | $96 | ||
AliExpress | High stock level | $106 | 1 | $106 | ||
AliExpress | High stock level | $106 | + $2.63 | 1 | $108 | |
ReadyMadeRC | In stock | $120 | 1 | $120 | ||
AliExpress | High stock level | $123 | COUPON $58.94-$2.99 | 1 | $120 |
See also
![HobbyWing XRotor F7 + Micro G2 45A 4in1 ESC HobbyWing XRotor F7 + Micro G2 45A 4in1 ESC](/i/no-photo.jpg)
![HobbyWing XRotor F7 + Micro G2 65A 4in1 ESC HobbyWing XRotor F7 + Micro G2 65A 4in1 ESC](https://ae04.alicdn.com/kf/S77a502ea0fc54d2b930200dfa1f80d574.jpg)
![HobbyWing XRotor F7 + Micro 60A 4in1 ESC HobbyWing XRotor F7 + Micro 60A 4in1 ESC](https://ae01.alicdn.com/kf/H404afdc0e9424ef9899ccc9afcff9a8cv/Original-Hobbywing-XRotor-Flight-Controller-F7-with-XRotor-Micro-40A-60A-4in1-BLHeli-32-DShot1200-for.jpg)
![HobbyWing XRotor F7 HobbyWing XRotor F7](https://ae01.alicdn.com/kf/Hc90a842425984b80b1971ffc17420620H/NEW-HobbyWing-XRotor-F7-Convertible-Flight-Controller-for-FPV-Racing-Quadcopter-Drone.jpg)

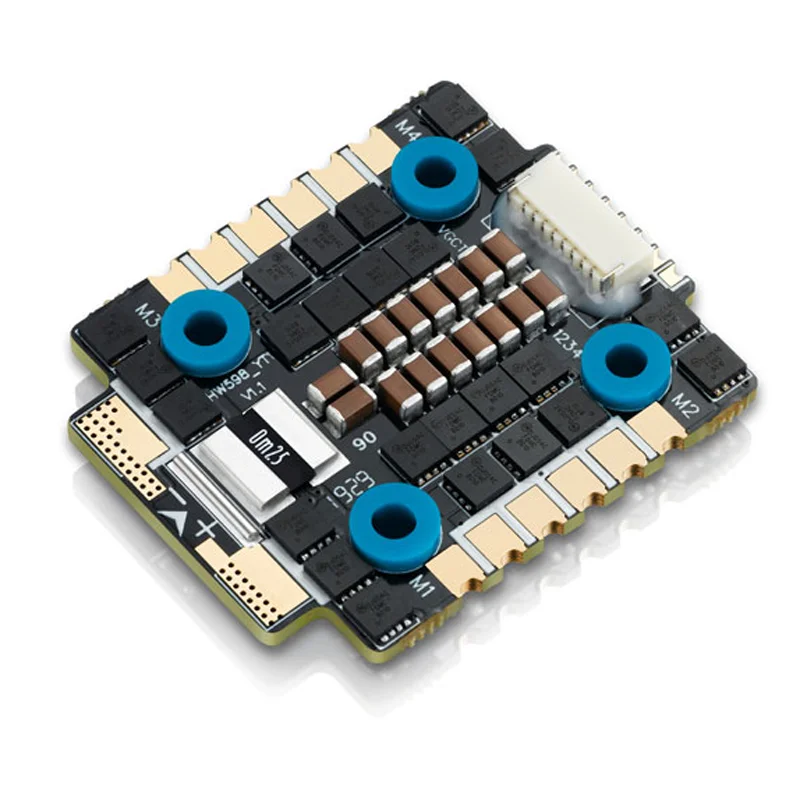

![Hobbywing XRotor Micro 40A 20x20 6S 4in1 Hobbywing XRotor Micro 40A 20x20 6S 4in1](https://ae01.alicdn.com/kf/H618ab29a5fd243a9a6ff182c6ae96290I/1PCS-XRotor-Micro-40A-6S-4in1-ESC-20x20-Mouting-Hole-Flight-Tower-Electronic-Speed-Control-for.png)
