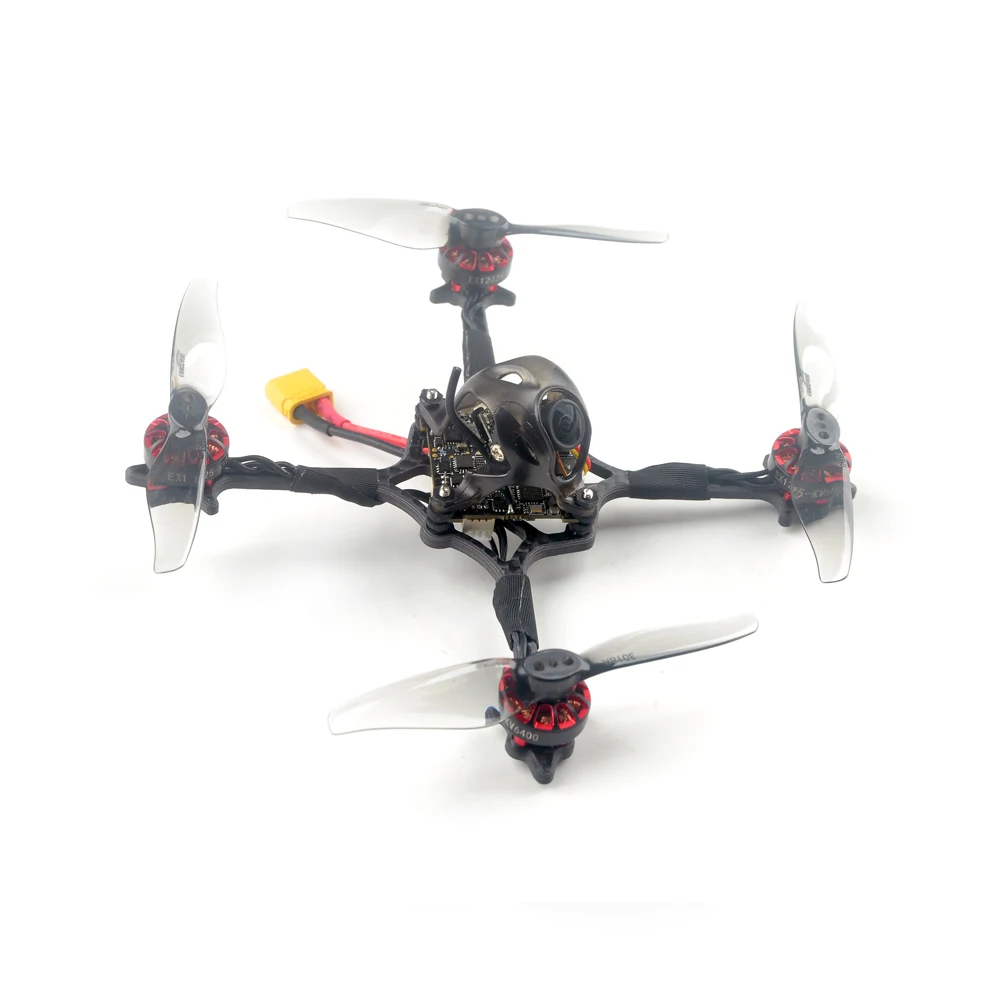

Happymodel Crux3 115mm 3" 1S-2S Caddx Ant BNF Frsky D8 SPI

Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14*14.5mm
Weight: 4.4g
No.of Cells(Lipo):1-2S

Gemfan 3018 2-Blade Propeller

Center Thickness:5.5mm

Prop Diameter:76.5mm

Center Hole diameter:1.5mm

MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 (SPI connection)
Board Size: 28.5x28.5mm
Power Supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver or no receiver
Built-in 5V 1A BEC

(Frsky SPI RX Version) CRAZYBEEX FR V2.2 FC  Firmware target: CrazybeeF4FR

(Flysky SPI RX Version) CRAZYBEEX FS V2.2 FC Firmware target: CrazybeeF4FS

(DSM2/X SPI RX Version)CRAZYBEEX DXS V1.0 FC firmware target: CrazybeeF4DXS

(External Frsky RXSR Version) CRAZYBEEX PNP V2.2 Firmware target: CrazybeeF4DX

(External TBS CRSF NANO Version) CRAZYBEEX PNP V2.2 Firmware target: CrazybeeF4DX

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 Receiver Version

SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 model

Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard Flysky SPI receiver Version

Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m

Failsafe support

Onboard DSM2/X SPI receiver Version

SPI BUS receiver DSM2/DSMX compatible

Channels: Max 12ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

RSSI enable (show on the goggles)

External Frsky R-XSR receiver version

Weight: 1.5g

Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)

Operating Voltage Range: 3.5V~10V

Operating Current:70mA@5V

Firmware Upgradable

Compatibility: FrSky X Series modules and radios in D16 mode

Could support Frsky New ACCESS Protocol ( Upgrade firmware)

External TBS CRSF Nano receiver version

Original TBS CROSSFIRE Receiver  ,CRSF Protocol , Official TBS transmitter compatible

Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smartaudio ready

Caddx ANT 1200TVL Camera

Image Sensor: 1/3" CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL Switchable

IMAGE:  4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio : >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(with bracket to 19*19mm)

Wide Power Input: DC 3.7-18V

Work Temperature: -20℃~+60℃

Weight: 2g (N.W.)
